Driveway warning system's enhanced module does it all.


This model operates on 10-14 VDC and has two Form A relay outputs that can be connected to alarm panels, bells, dialers, etc. Unit also includes internal alarm buzzer with silence.



Typical Applications:

  • Residential
  • Vacation Homes
  • Farms or Ranches
  • Warehouse Building
  • Greenhouses areas
  • Storage lots
  • Private Drives



Features:

  • Electronic controlled design
  • 10- 14 VDC powered
  • Two-probe monitoring capablity
  • Exit delay timer
  • Provides (2) SPST output
  • Built-in audiable alarm
  • Easy surface mount installation
  • One year parts and labor; subject to conditions of limited warranty.



Accessory Options:

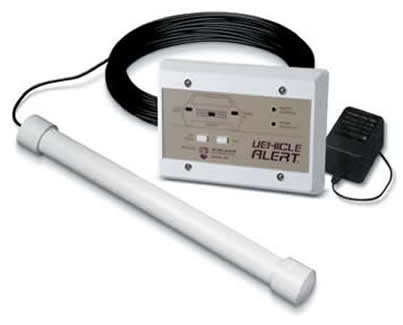

  • Complete standard Vehicle-Alert system
    Includes: Console, probe, 100 ft cable & transformer.
  • Vehicle-Alert Console and Transformer
  • Vehicle-Alert Console
  • 100 foot cable & Probe
  • 10 foot cable & Probe
  • 200 foot cable & Probe
  • 350 foot cable & Probe
  • 500 foot cable & Probe
  • 1000 foot cable & Probe
  • Additional Cable
  • Splice Kit
  • Remote Annunciator (12 VDC)
  • Plastic 3-gang SMT electrical Box
  • Metal 3-gang SMT electrical Box
  • Wall Transformer
    Voltage: 110 VAC - 12VDC regulated, 300mA.



Specifications:

  • Power Requirements: Regulated 10-14 VDC @ 100 mA
  • Current Draw (No accessories): Resting: 40 mA « Alarm: 70 mA
  • Buzzer Duration: 1 to 18 seconds
  • Buzzer Sound Pressure Level: 88 db minimum @ 30 cm @ 12 VDC
  • Exit Delay: Fixed @ 6 minutes
  • Outputs: 2 SPST relay outputs
  • Output Rating: 500 mA
  • Console Size: 6.55" x 4.70" x 1" (16.6 cm x 11.9 cm x 2.5 cm)
  • Operating Temperature: 32ç to +130ç F (0ç to +54ç C)
  • Weight (Console, probe, 100' cable & transformer): 5.8 pounds
    (2.63 Kg)
  • Cable Type: Direct burial 22 AWG shielded twisted pair with ground wire
  • Maximum Cable Length: 2500 ft. (762.5 meters)
  • Maximum Number of Probes: 2
  • Alarm Console Mounting: Mounts to 3-gang electrical box


Pricing Table
100' of cable $275
200' of cable $304
350' of cable $358
500' of cable $410
1000' of cable $575


Call today for an installation quote and to place the order . Thanks for looking.
